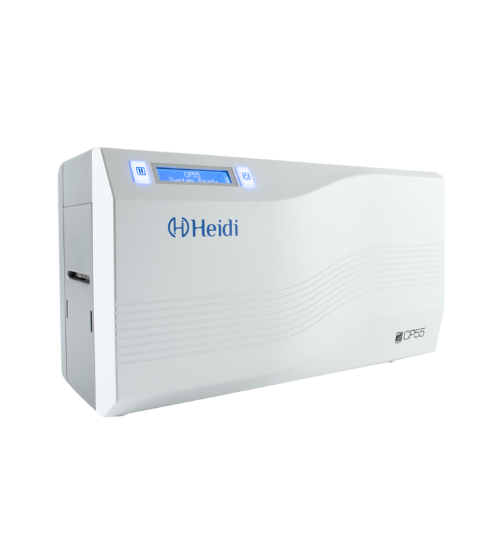

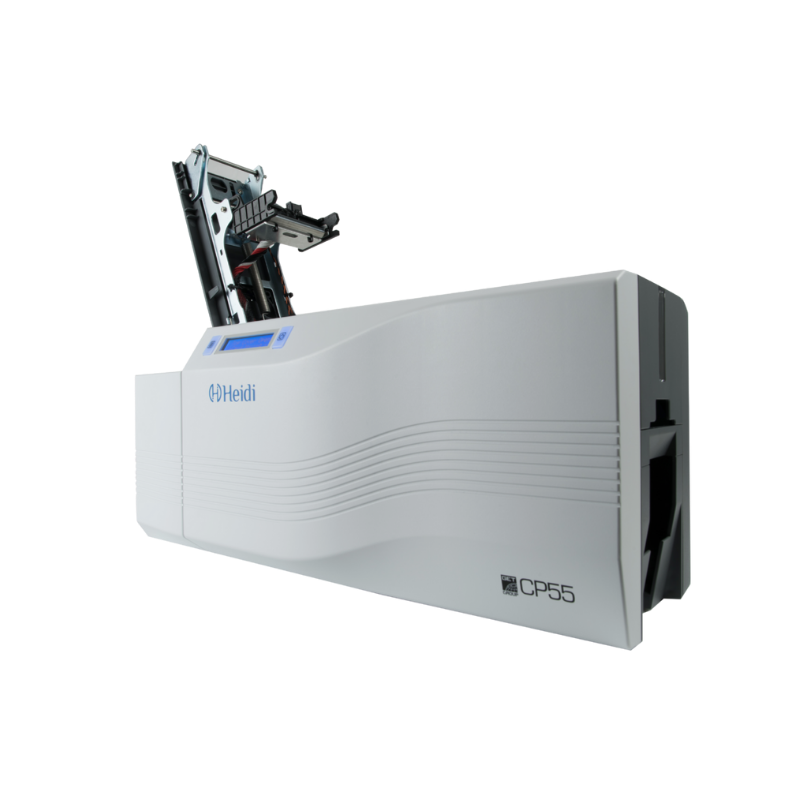

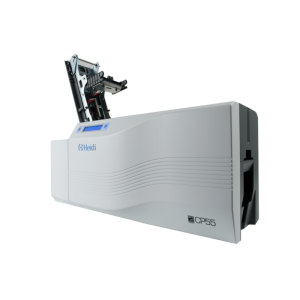

Heidi CP55-D
Dual-Side Card Printer
The Heidi CP55-D is a modern, dual-sided, high-speed direct-to-card printer built for organizations that need professional ID card printing on both sides—fast, consistently, and at a competitive cost-per-card. It delivers 300 dpi (300×300) edge-to-edge printing on ISO CR-80 cards and supports a variety of card thicknesses, making it a strong fit for day-to-day card issuance operations across multiple environments.
Key Features
- Dual-side (two-sided) printing
- 300×300 dpi / 300 dpi, edge-to-edge print quality
- High-speed output
- User-friendly operation with LED indicators, buttons, and LCD status display
- All-in-one ribbon cassette + cleaning roller
- Built-in 64 MB memory
- Trusted security options including contact, contactless, and magnetic stripe encoding
- Security personalization options like UV ribbon for covert protection against tampering/fraud attempts

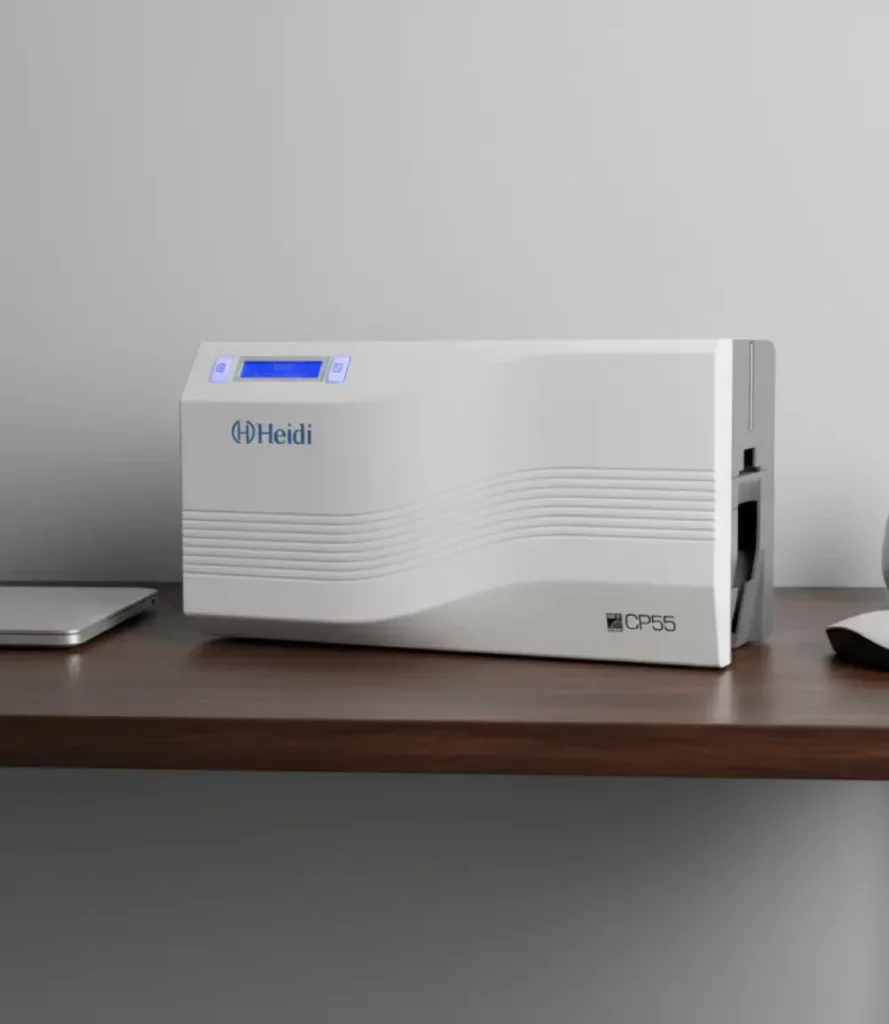

Dual-Side ID Cards, Done Fast
Plus scalable security and networking upgrades
It’s positioned as the go-to choice when you need volume + quality + control in one platform.
Technical Specifications
Printing
-
Printing Method
Direct to card dye-sublimation/resin thermal transfer
-
Resolution
300 dpi (11. dots/mm)
-
Print Area
CR-80 (3.36˝L x 2.11˝W/85.3 mm L x 53.7 mm W)
-
Printing Speed
Color (YMCKO): 170 cards/hour
Color (YMCKOK): 130 cards/hour
Black Overlay (KO): 360 cards/hour
Mono (Black): 720 cards/hour -
CPU
AM3352 600MHz
Card details
-
Accepted Standard Card Sizes/Format count
ISO CR-80 (3.375˝L x 2.125˝W/85.6 mm L x 54 mm W)
-
Accepted Card Thickness
0.38mm (15mil) ~ 1.0mm (40mil)
-
Card Cleaning
Cleaning roller with each cartridge
-
Input Hopper Card Capacity
100 cards (200 cards with cover open)
-
Output Hopper Card Capacity
40 cards (100 cards with option backside stacker)
System & Connectivity
-
Memory
ROM: 2MB, RAM: 64MB
-
Software
GET Identity (ID Card Design & Management Software)
-
Interface
USB 2.0, Ethernet Optional
-
Display
2 Lines(16×2) LCD & LED
-
Power
Free Voltage (110/240V AC), 50 ~ 60 Hz, 45W
-
Operating System Support for Printer Driver
Windows 7/8/10, Linux, Mac
Dimensions and Certifications
-
Dimensions
486mm(W) x 208mm(H) x 166mm(D)
-
Weight
6.0 Kg
-
Certification
CE, CB, FCC
