SecureLink Network Appliance
External Network Module
The SecureLink Network Module is a plug-in device that allows Digital Check TellerScan® TS240 and CheXpress® CX30 to operate in a network-ready environment. By moving processing and compression inside the module, it enables scanners to work independently of the host PC, with easy integration through the SecureLink API
Key Features
- Runs the SecureLink Network API for browser-based scanner control
- Performs onboard image compression and scanner operation handling
- Works in virtual desktop environments (Citrix, VMware, etc.)
- Compact external device with plug-and-play installation
- Provides an OS-independent connection, simplifying integration
- Designed as a cost-effective way to extend scanner life by upgrading to network use

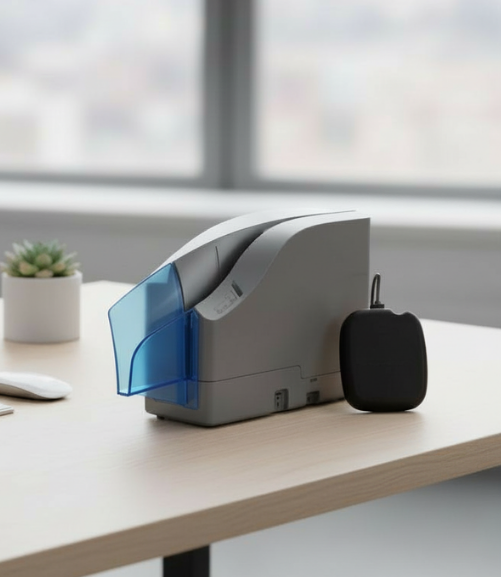

Compact and Efficient
About the size of a hockey puck, the SecureLink Network Module fits easily on any desktop or teller station without taking up valuable space. Its low power consumption means it runs cool and quiet, requiring no special ventilation or installation conditions.
Technical Specifications
Dimensions and Weight
-
Height
1.1″ (2.79 cm)
-
Width
3.4″ (8.63 cm)
-
Length
4.0″ (10.6 cm)
-
Weight
0.19 lbs. (0.09 kg)
Connectivity
-
Speed
1x Ethernet 10/100 Mbps port
Operating System and APIs
-
OS
SecureLink 2.0 API: OS independent
Scanner Models Supported
-
CheXpress CX30
Yes
-
TellerScan TS240
Yes
