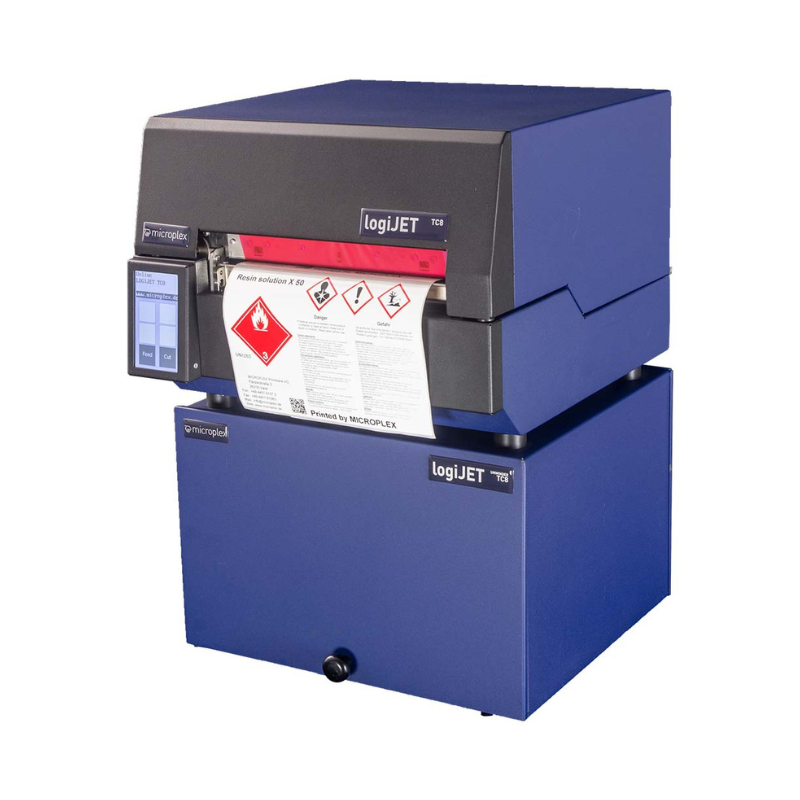

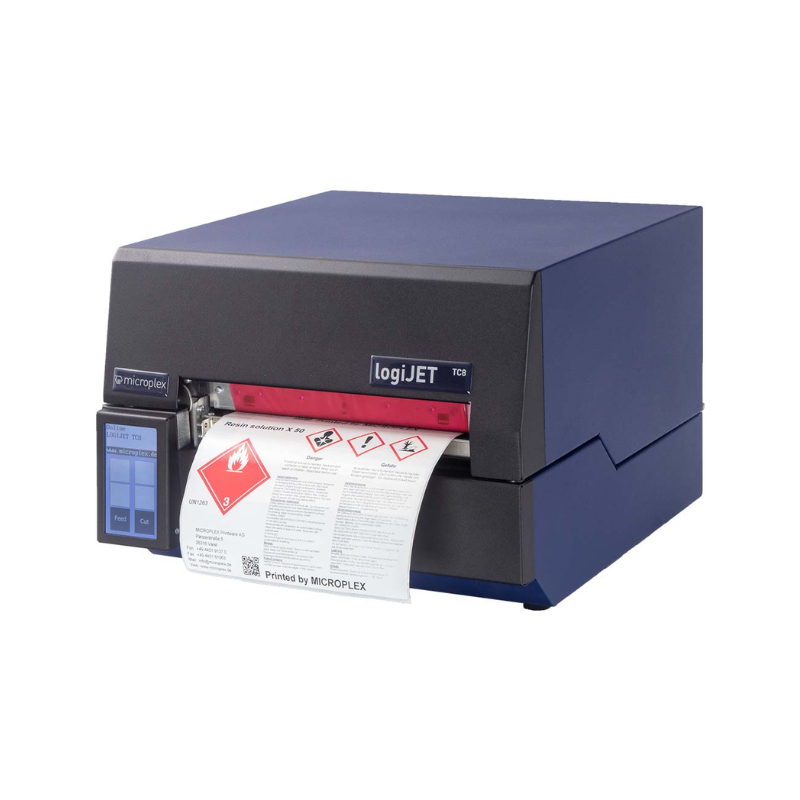

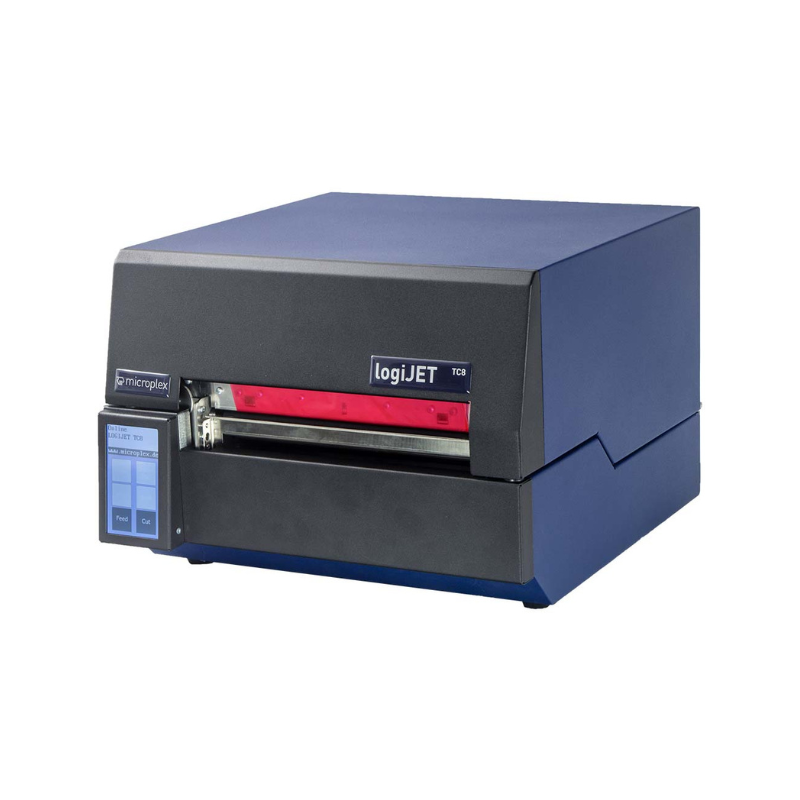

Microplex logiJET TC8
Two color thermal transfer printer
The Microplex logiJET TC8 is a robust 8-inch thermal transfer printer engineered for demanding industrial environments and high-duty label production.
It features two print modules, each configurable with any color thermal transfer ribbon. With a red/black setup, it is ideal for producing GHS-compliant hazardous goods labels, including applications aligned with the BS5609 standard.

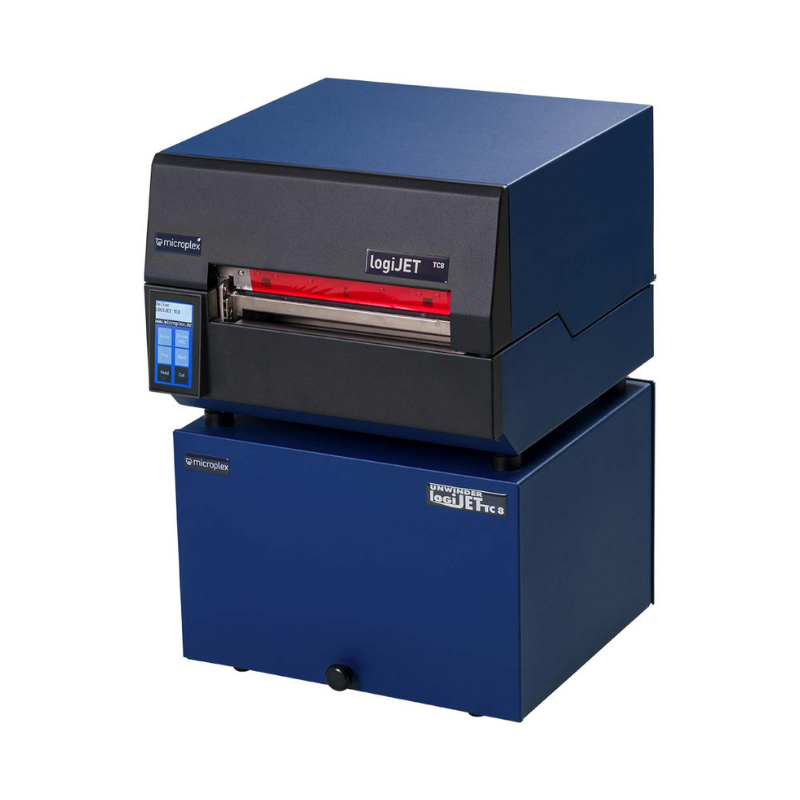

If required, the TC8 can be equipped with an unwinder for smooth processing of roll media; an optional rewinder can take up printed continuous labels for cleaner handling and efficient workflows.

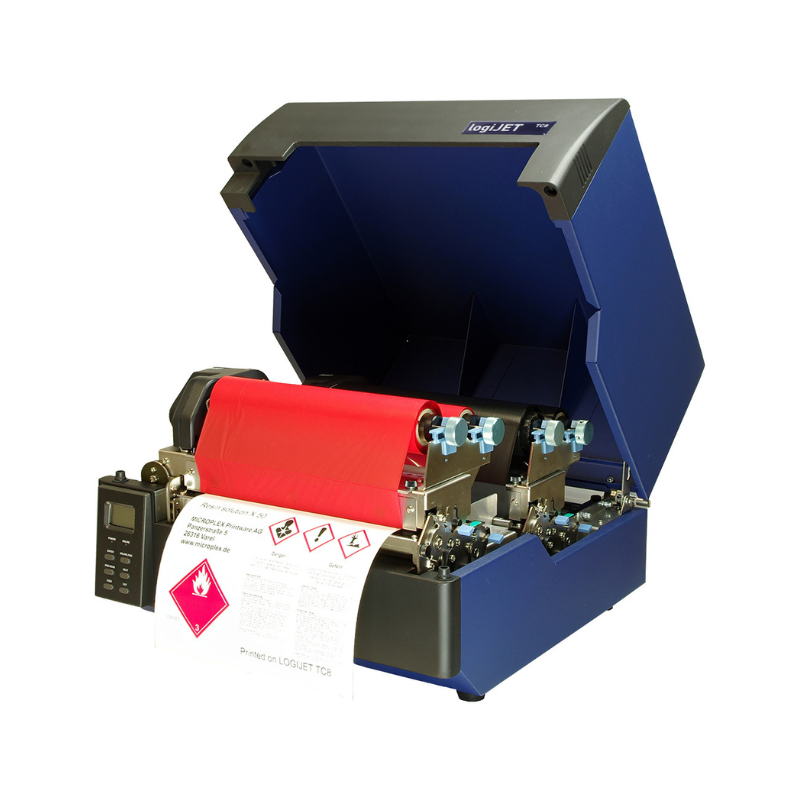

The logiJET TC8 is built in a durable metal housing, with easy consumable loading and straightforward operation—designed to meet the practical requirements of industrial users.
With integrated PCL5 printer language, the TC8 can directly replace standard laser printers, enabling a smooth, fast, and cost-effective setup—plus simple integration with SAP® environments.
Key Features
- GHS-compliant hazardous materials labeling
- Two color printing to ensure greater attention
- Completely trouble-free paper handling
- Up to 150 mm per second
- SAP® and AS/400 compatible through PCL5 + JetCAPS as well as LAN-IPDS
- Compatible with standard laser printers

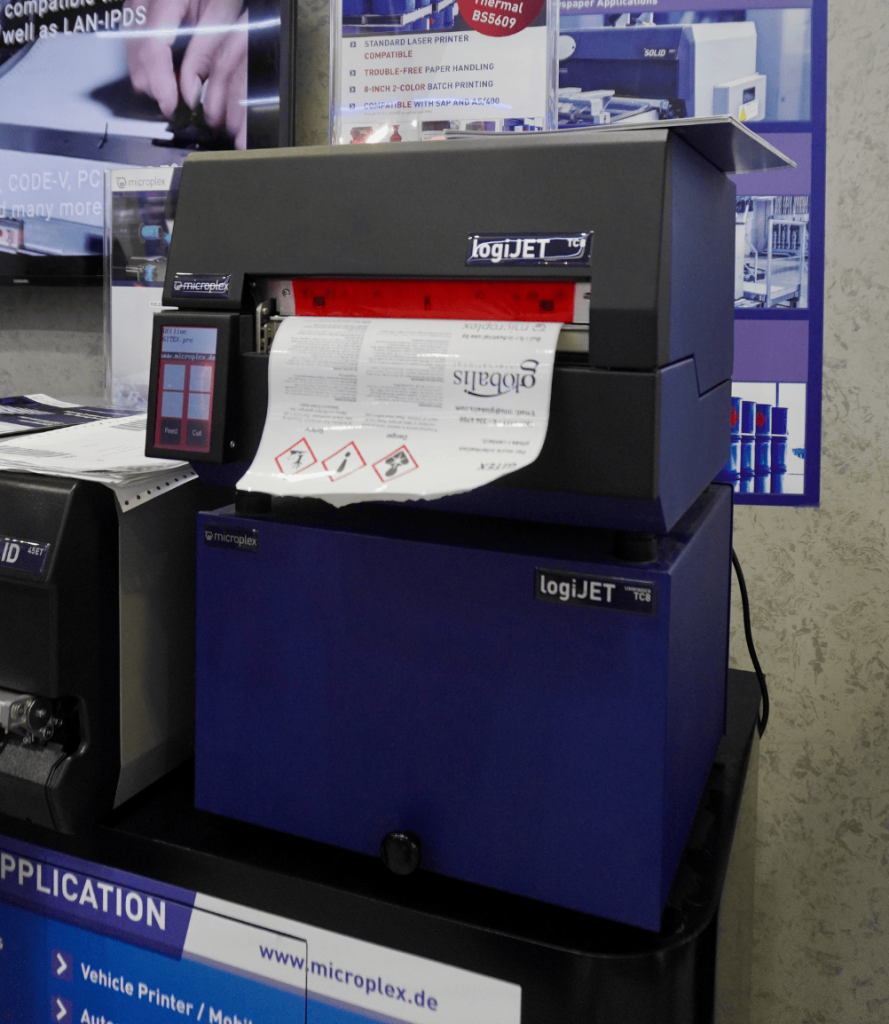

The Microplex logiJET TC8 is perfect for:
- Certified dangerous goods labels according to BS5609
- Scratch and smudge resistant labels on plastic material
- Price marking, containers for flammable liquids, chemical products etc.
- Labels in the medical and pharmaceutical field
- Roll and drum labels up to DIN A4 width
Technical Specifications
Printing
-
Print Technlogy
Thermal transfer harmonic (history-controlled flat head technology)
-
Print Speed
up to 150 mm/s // up to 6 inch/s
-
Print resolution
max. 300 dpi x 300 dpi
-
Lifetime print head Transfer
up to 50.000 m
Dimensions
-
Dimensions
389 x 420 x 293 mm
(WxDxH) -
Weight
21,5 kg (without options)
Interfaces and Power
-
Interfaces
USB 2.0, Ethernet-Interface 10/100 MBit, bi-directional (TCP/IP)
Option: RS232 or RS422, IEEE 1284 (Centronics), WIFI: IEEE 802.11 n/g/b, WEP with 64 and 128 Bit, WPA/WPA2, WPA-PSK/WPA2-PSK
-
Power supply
100 - 240 VAC, 50/60 Hz
-
Power consumption
6,0 A
Emulations
-
Interface
MICROPLEX IDOL, HP-PCL5/ HPGL, IGP/PGL, AGFA Reno, LN03+, BULL-MP6090, Datamax, Etimark MP-1220, TEC Bx72, TEC B6xx, LDC, ZPL II, EPL2, Intermec Direct Protocol, IER Command, cab, Godex EZPL, Diablo 630, IBM Proprinter, Epson FX-80 (ESC/P), MT-600/MT40, IDS, ANSI Genicom, TIFF, HP Designjet, XML (SAP® RFID), CUPS Raster, PDF Direct Printing (more emulations as option available and on request)
-
Remote Management Support
SOTI Connect (License necessary)
