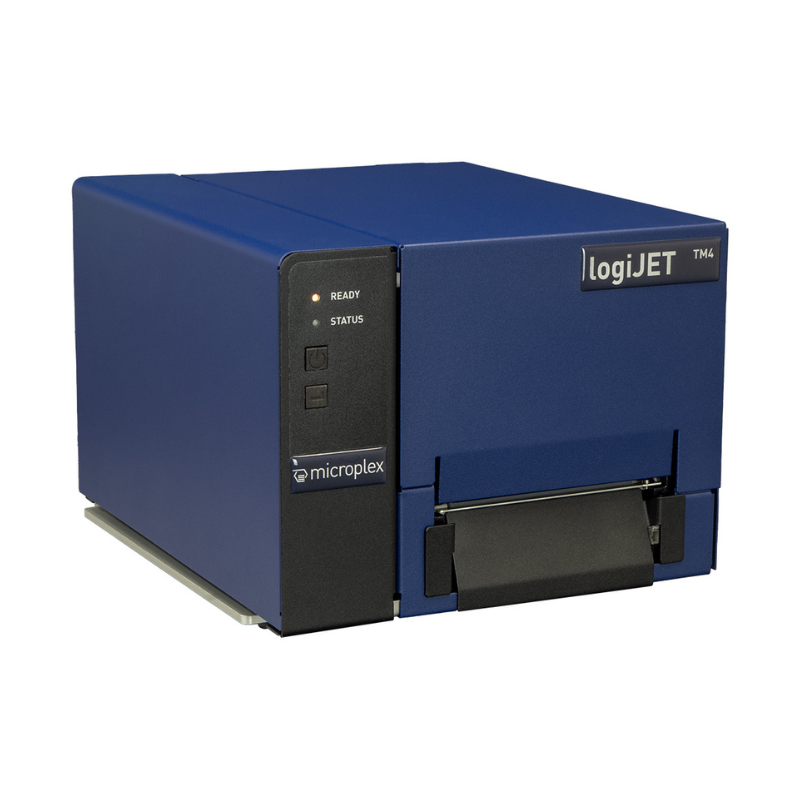

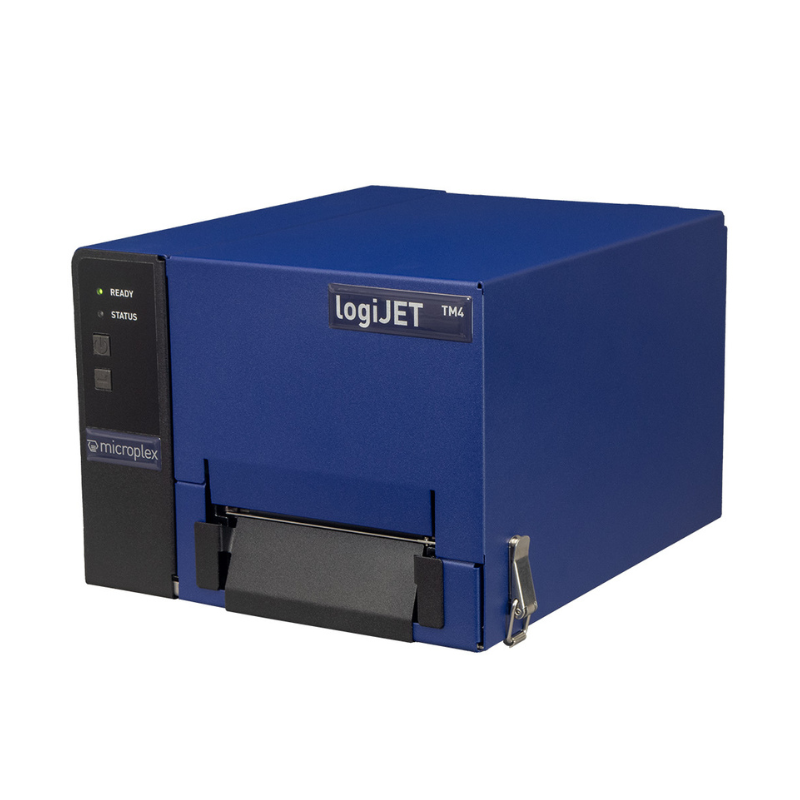

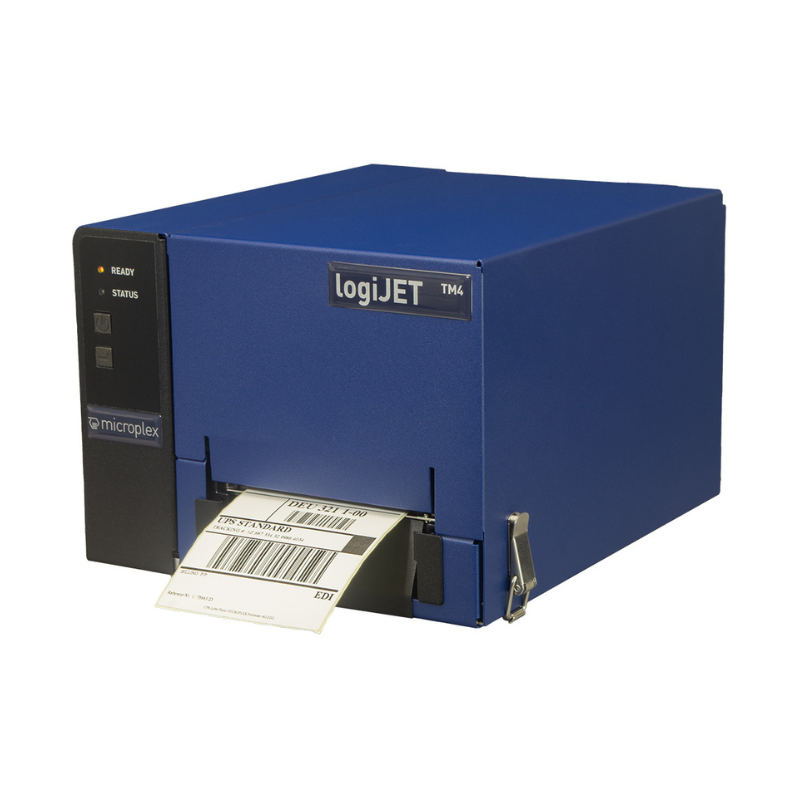

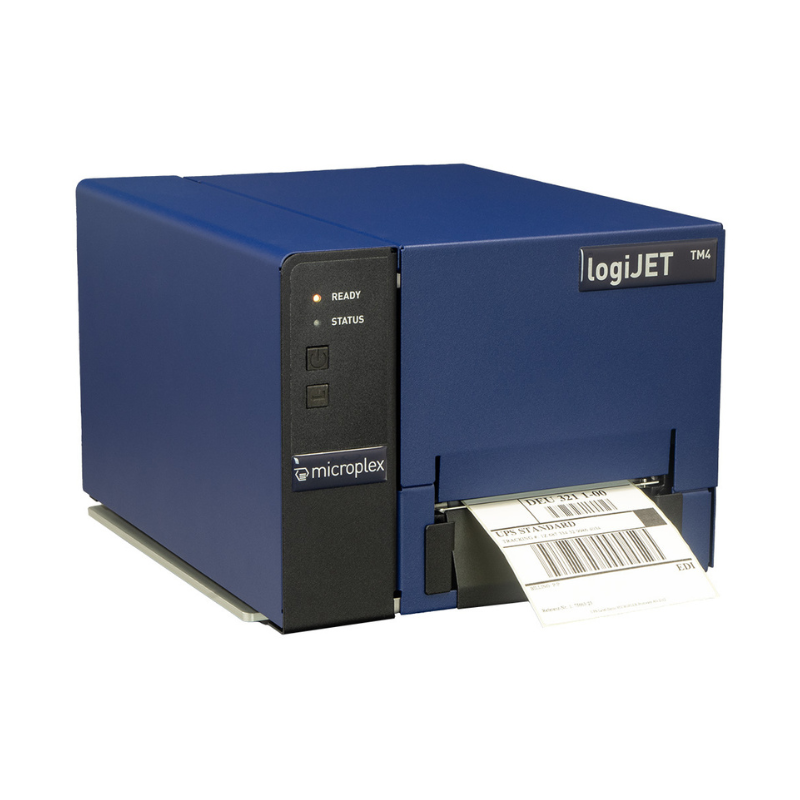

Microplex logiJET TM4
Thermal Printer
The Microplex logiJET TM4 stands for wireless mobility in production and warehouse logistics. It supports DC power for battery operation (12 V, 24 V, 48 V DC) and also includes an AC power supply for 100–240 V AC connections.
With optional Wi-Fi, the logiJET TM4 mobile thermal printer can be deployed flexibly at virtually any location—ideal for dynamic shopfloor and logistics workflows.
Additional interfaces such as USB, Centronics, and serial RS232/RS422 significantly broaden integration options and expand the range of use cases.
This makes the logiJET TM4 suitable as a stationary printer at a fixed point, or—when operations shift—mounted on a forklift or a mobile workstation for on-demand printing.

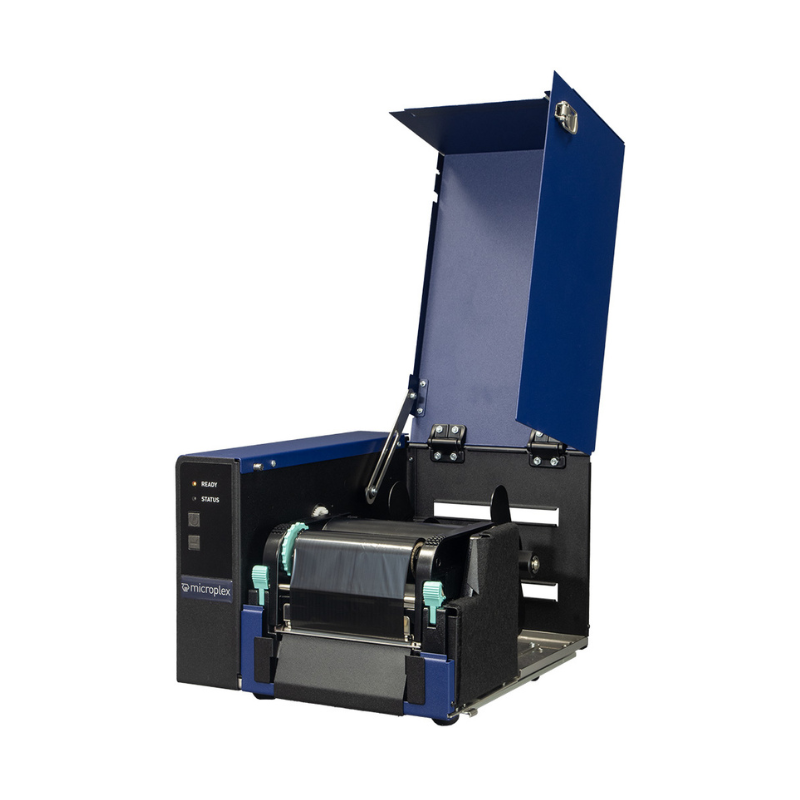

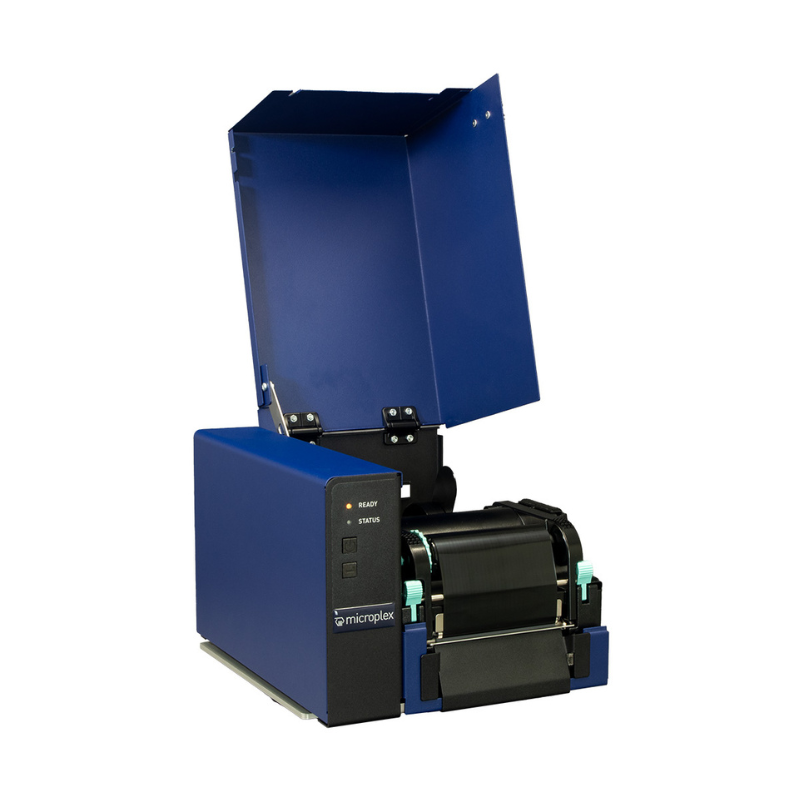

At the same time, it supports both direct thermal and thermal transfer printing. The result is a cost-effective “4-in-1 just-in-time printer” that can be precisely matched to your application.
Key Features
- Mobile Applications with 12V, 24V or 48V
- AC Power Supply: 100 – 240 V
- Compatible with: PCL5, IGP, IPDS, PDF®, ZPL II, etc.
- WiFi optional
- Laser printer compatible
- SAP® und AS/400-compatible Assembly on industrial trucks (forklift trucks)
- Packing stations with limited space
- Locations with high dust loads
- Compact design, robust metal case

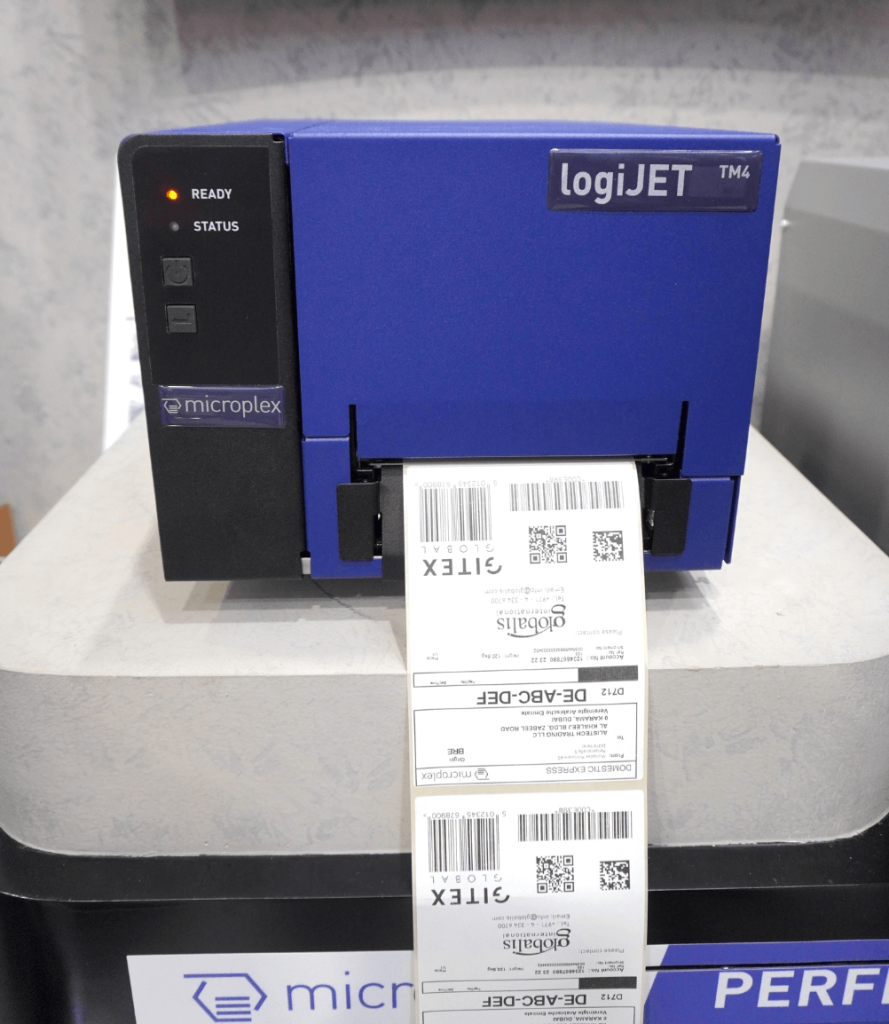

The Microplex logiJET TM4 is perfect for:
- Mobile Work Stations
- Mobile Vehicle Printer (Forklift)
- Packing stations with limited space
- Locations with high dust load
- Individual marking in production, warehouse and dispatch
Technical Specifications
Printing
-
Print Technlogy
Thermal transfer/direct thermal (history-controlled
flat head technology) -
Print Speed
up to 150 mm/s // up to 6 inch/s
-
Print resolution
max. 300 dpi x 300 dpi
-
Lifetime print head Transfer
Transfer: up to 50.000 m // Direct: up to 25.000 m
Dimensions
-
Dimensions
275 x 320 x 220 mm
(WxDxH) -
Weight
10,0 kg (without options)
Interfaces and Power
-
Interfaces
USB 2.0, Ethernet-Interface 10/100 MBit, bi-directional (TCP/IP)
-
Option
RS232 or RS422, IEEE 1284 (Centronics), WIFI: IEEE 802.11 n/g/b, WEP with 64 and 128 Bit, WPA/WPA2, WPA-PSK/WPA2-PSK
-
Power supply
AC: 100 - 240V (max. 1.6 A), 50/60Hz autoselectable
-
DC
12V (8A), 24V (4A), 48V (2A)
Emulations
-
Emulations
MICROPLEX IDOL, AGFA Reno, LN03+, BULL-MP6090, IGP/PGL, Datamax, Etimark MP-1220, TEC Bx72, TEC B6xx, LDC, ZPL II, EPL2, Intermec Direct Protocol, IER Command, cab, Godex EZPL, Diablo 630, IBM Proprinter,
Epson FX-80 (ESC/P), MT-600/MT40, IDS, ANSI Genicom, TIFF, HP Designjet, XML (SAP® RFID), CUPS Raster PDF Direct Printing (more emulations as option available and on request) -
Remote Management Support
SOTI Connect (License necessary)
