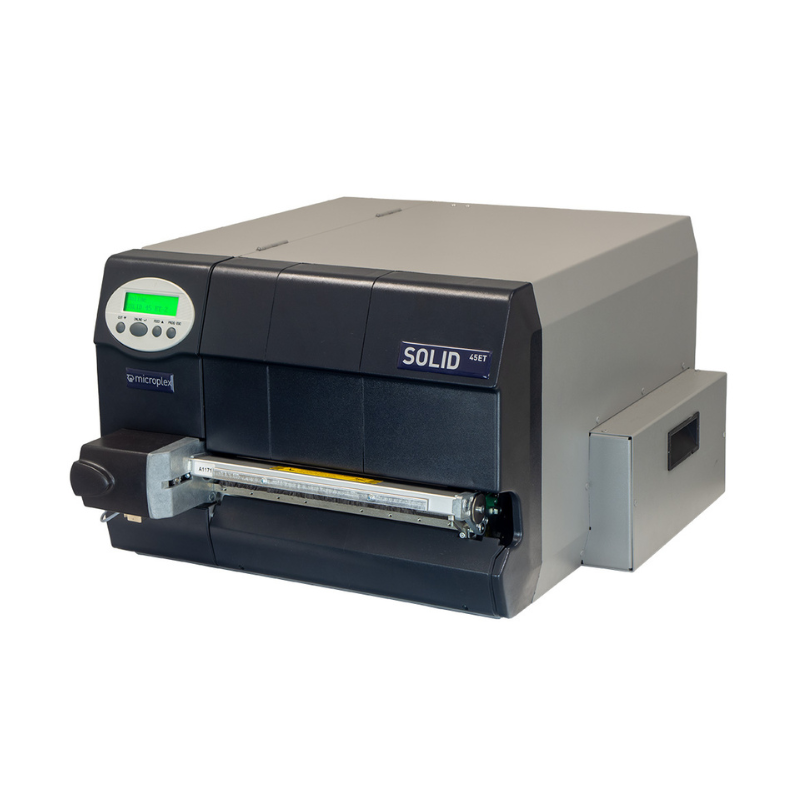

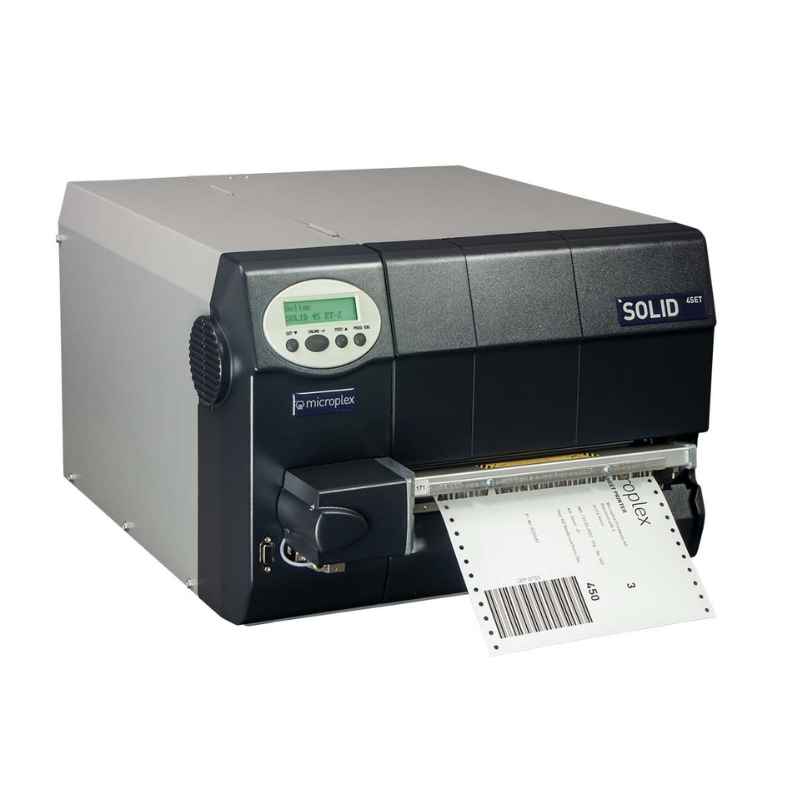

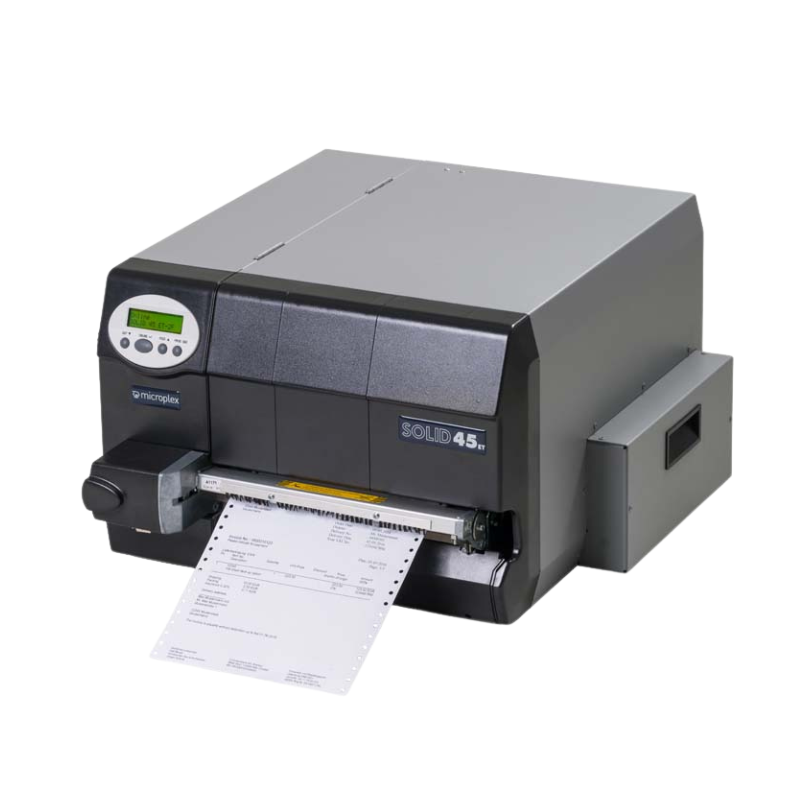

Microplex Solid 45ET
Thermal Printer
The SOLID 45ET features a sophisticated tractor paper feed system engineered for maximum reliability and consistently smooth, secure paper transport. It comes with one tractor as standard, and is also available with an optional factory-fitted double tractor. The dual-tractor setup supports uninterrupted printing or “parallel” printing across two different paper formats.
With a rapid print start, high operating speed, and dependable paper handling, the SOLID 45ET is ideal for seamless integration into demanding logistics and production workflows.
Built-in PCL5 delivers strong compatibility with standard laser printers and enables straightforward SAP® connectivity.
Key Features
- Fast interruption-free printing or two formats (with optional Dual Tractor system)
- Completely trouble-free paper handling
- First page after just 2 seconds
- Up to 45 pages per minute
- SAP® and AS/400 compatible through PCL5 + JetCAPS as well as LAN-IPDS
- Compatible with standard laser printers
- Very high printing speed
- Stickers, labels and tags up to DIN A4
- Top sheet printing in the newspaper industry
- Fast real-time or batch processing
- Suitable for the toughest continuous use

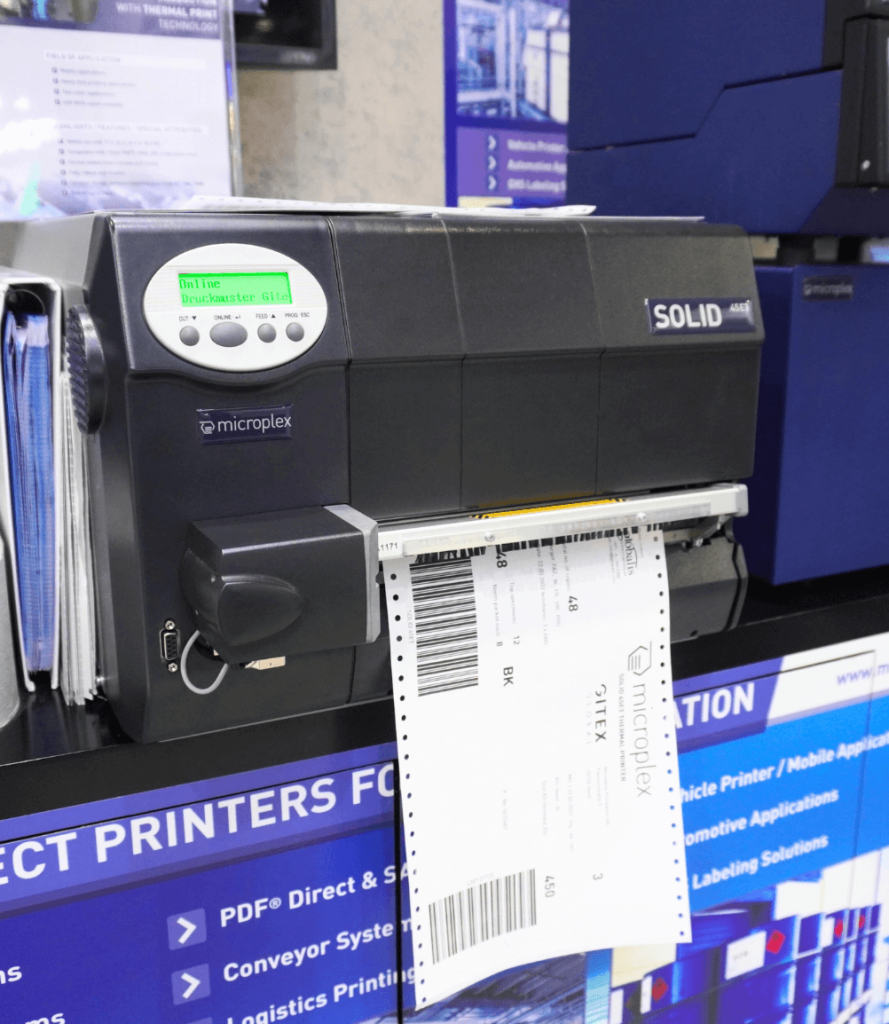

The Microplex SOLID 45ET is perfect for:
- Top Sheet Printing
- Stickers, labels and tags
- Workflow documents
- Real-time or batch processing
Technical Specifications
Printing
-
Print Technlogy
Thermal transfer/direct thermal (history-controlled neard-edge print head)
-
Print Speed
up to 45 pages/min
-
Print resolution
max. 300 dpi x 300 dpi
-
Lifetime print head Transfer
Transfer: up to 50.000 m // Direct: up to 25.000 m
Dimensions
-
Dimensions
490 x 760 x 305 mm
(WxDxH) -
Weight
30 kg (without options)
Interfaces and Power
-
Interfaces
USB, RS232 or RS422, IEEE 1284, Ethernet-interface 10/100 MBit, bi-directional (TCP/IP)
-
Power supply
110/240 VAC autoselect
-
Power consumption
3,2 A
Emulations
-
Emulations
MICROPLEX IDOL, HP-PCL5/ HPGL, IGP/PGL, AGFA Reno, LN03+, BULL-MP6090, Datamax, Etimark MP-1220, TEC Bx72, TEC B6xx, LDC, ZPL II, EPL2, Intermec Direct Protocol, IER Command, Godex EZPL, Diablo 630, IBM Proprinter, Epson FX-80, MT-600/MT40, IDS, ANSI Genicom, TIFF, HP Designjet, XML (SAP® RFID), CUPS Raster (more emulations as option available and on request)
