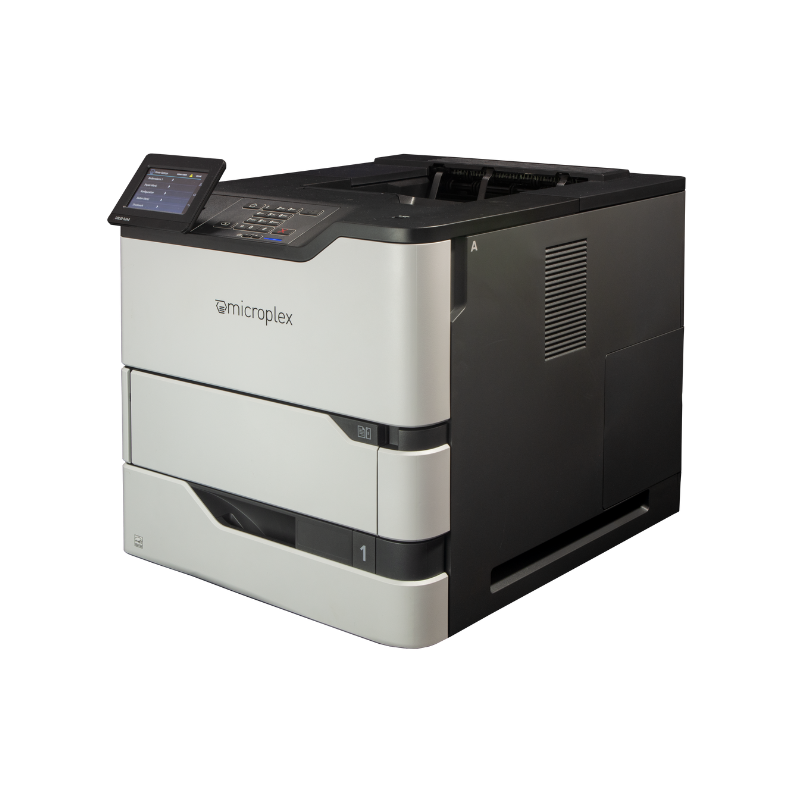

Microplex Solid 52A
Cut-sheet Laser Printer
The SOLID 52A4 is an A4 cut-sheet laser printer delivering a fast output of 52 A4 pages per minute. A key advantage is its ability to handle very small formats such as A6, as well as special custom sizes like KLT / Small GTL (74 × 210 mm) directly from the paper cassettes—ideal for logistics labels, inserts, and production documents.
Beyond PCL5 processing, the SOLID 52A4 also supports PDF® direct printing. It is compatible with widely used thermal printer emulations such as IGP-10, Labelpoint, ZPL, and more, as well as line printer emulations including IBM® Proprinter, Epson ESC, MT-600/MT40, etc.—making migration from legacy printer environments smooth and cost-effective.
Designed for industrial use, it combines high reliability with versatile media handling. Options like face-up output, GPIO/SPS control, and status-out, powered by the unique Microplex controller, deliver the intelligence needed to integrate the SOLID 52A4 into production lines where precise control and “handshake” operation are critical.
Key Features
- Standard: PDF Direct Print, Optional: WIFI
- Duplex printing standard

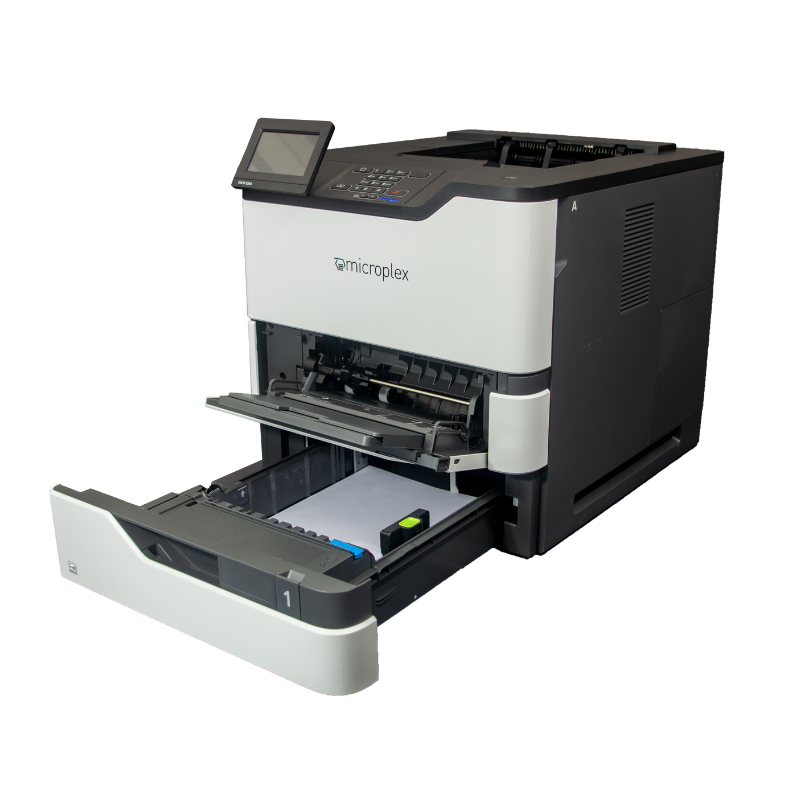

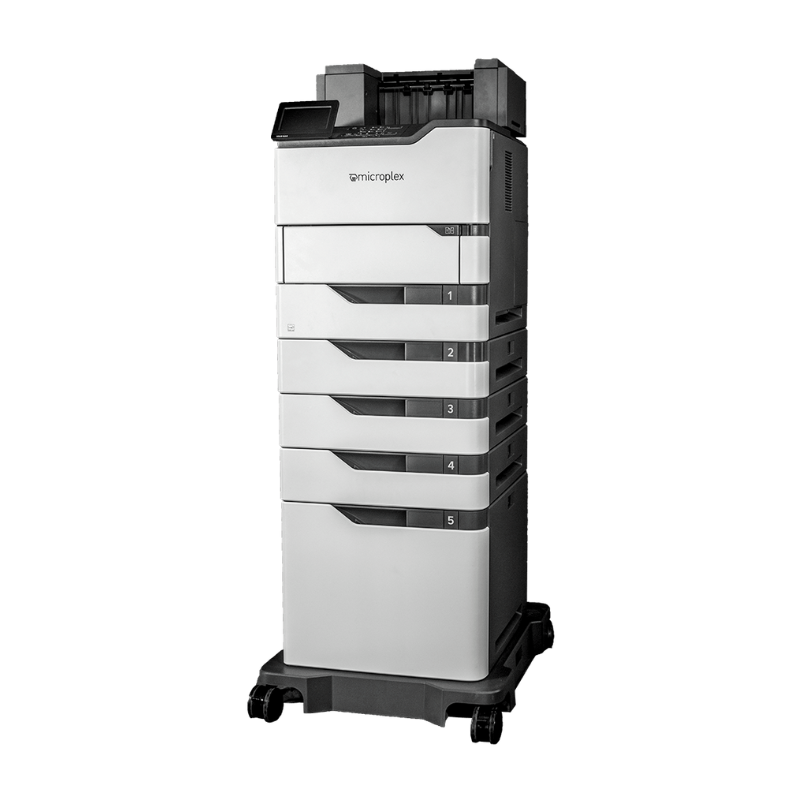

- Flexible extension options for paper feed and tray
- Full integration in production lines through GPIO / Status-Out
The Microplex SOLID 52A is perfect for:

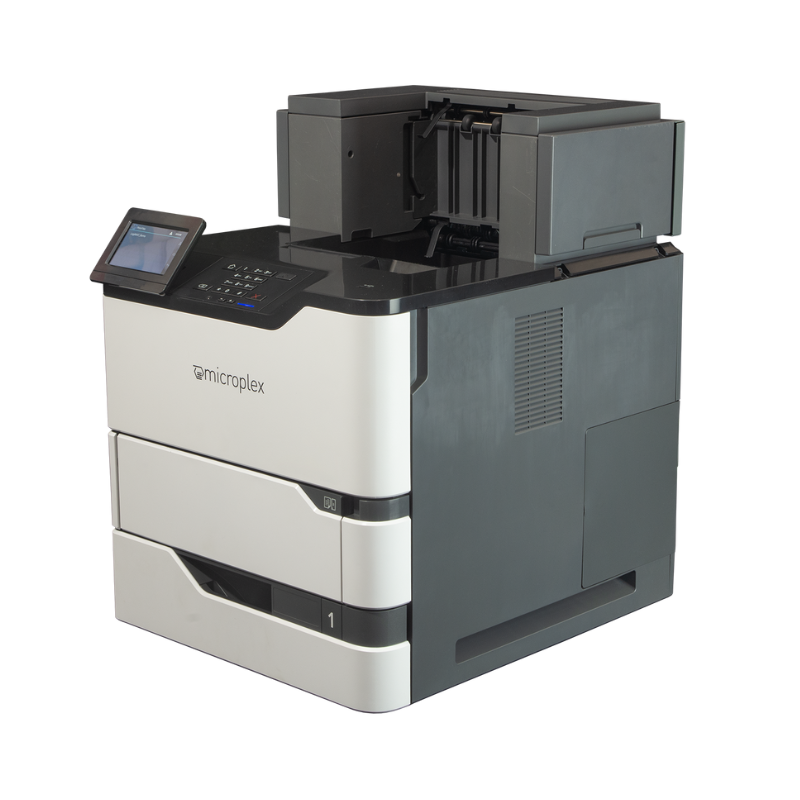

- Paper exit face-up and face-down
- Integration with GPIO bi-directional communication
- Special paper sizes like A6, KLT (74 x 210 mm)
- Printing with different emulations (PCL5, IGP, IPDS, …)
- Just-in-Time Applications
Technical Specifications
Printing
-
Print Technlogy
Laser, OPC, heat / pressure
-
Print Speed
up to 52 pages/minute (A4), first page: approx. 5,9 s
-
Print resolution
max. 600 dpi x 600 dpi
-
Duty cycle
up to 50.000 pages (A4) (based on a using period of 60 months)
max. 250.000 pages (A4)
Dimensions
-
Dimensions
428 x 511 x 442 mm
(WxDxH) -
Weight
26 kg (incl. consumables)
Interfaces and Power
-
Interfaces
USB 2.0, Ethernet-Interface, 10/100 MBit, bi-directional (TCP/IP)
-
Factory Option
IEEE 1284 (Centronics)*
Option: RS232 or RS422*, WIFI: IEEE 802.11 n/g/b, WEP with 64 and 128 Bit, WPA/WPA2, WPA-PSK/WPA2-PSK -
Power supply
220-240 VAC, 50/60 Hz
-
Power consumption
700 W (Sleep Mode: 4,2 W)
Emulations
-
Emulations
MICROPLEX IDOL, HP-PCL5/ HPGL, AGFA Reno, μ-Postscript, LN03+, BULL-MP6090, Datamax,Etimark MP-1220, TEC Bx72, TEC B6xx, LDC, ZPLII, EPL 2, Intermec Direct Protocol, IER Command, cab, Godex EZPL, Diablo 630, IBM Proprinter, EPSON FX-80 (ESC/P), MT-600/MT40, IDS, ANSI Genicom, TIFF, HP Designjet, XML (SAP® RFID), CUPS Raster, PDF Direct Printing (more emulations as option available and on request)
-
Remote Management Support
SOTI Connect (License necessary)
