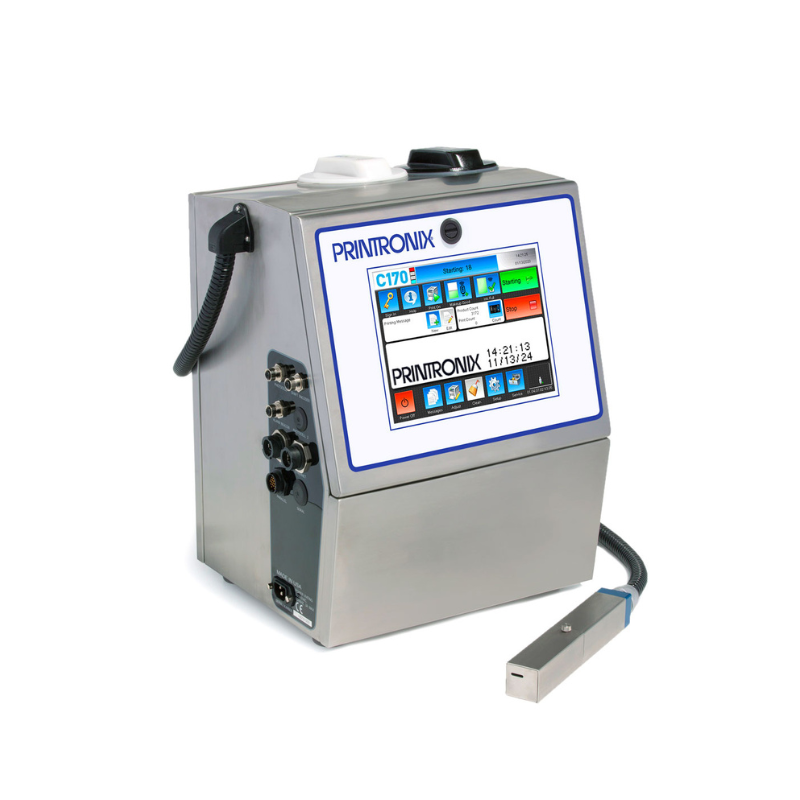

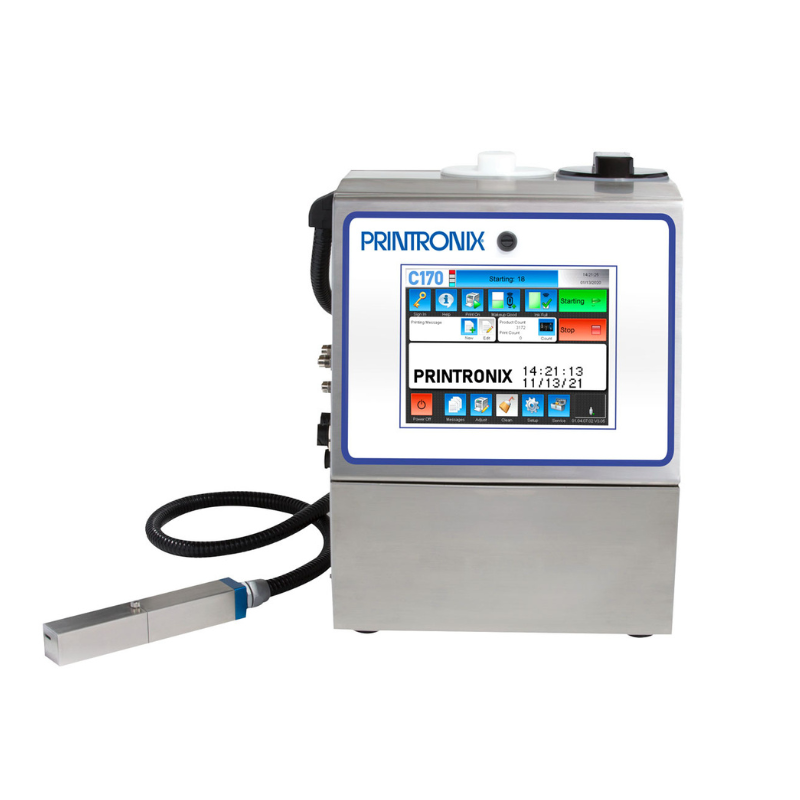

Printronix C170
Continuous Inkjet Printing System. Print Direct to Food Products.
The Printronix C170 is a continuous inkjet coding and marking printer engineered for the most demanding production lines. From ultra-high-speed bottling and canning to printing on dark substrates, food-grade products, and security applications, the C170 delivers unmatched performance, flexibility, and reliability.
Key Features
- Prints up to 5 lines of text, barcodes, or graphics
- 10.4” colour touchscreen with intuitive OneTouch™ interface
- CleanStart™ automated printhead cleaning
- OneTouch™: single step operator functions reduce operator steps.
- AutoOff™ Go Home Button for end-of-day automation
- Large volume ink tanks with on-the-fly refilling
- Rugged design for continuous operation in industrial environments
Smart Printing Performance
TruPoint™: Advanced technology that delivers sharper, more precise codes for maximum readability.
Code Faster: Optimized high-speed printing keeps up with demanding production lines.
Unicode Fonts,over 30,000 characters: Full language support ensures accurate coding across global markets.
Ink Range: Wide selection of inks designed for adhesion, contrast, and durability on diverse substrates.
Technical Specifications
Printing
-
Lines of Print
1 - 5 Lines, 32 Pixel
-
Print Fonts
5, 7, 9, 12, 16, 19, 25, 32
-
Adjustable Print Height
0.06" (1.5 mm) - 0.50" (12 mm)
-
Optional Print Height
0.10" (2 mm) - 0.75" (19 mm)
-
Print Speed
1 Line: 1500 feet/minute
(470 meters/minute)
2 Line: 345 feet/minute
(108 meters/minute)
3 Line: 173 feet/minute
(54 meters/minute)
4 Line: 119 feet/minute
(36 meters/minute)
5 Line: 114 feet/minute
(35 meters/minute)
Operation
-
Technology
Continuous Ink Jet (CIJ) Technology,
Single Printhead Control -
Operation Features
Icon Based Operation, Single
Button Start, Single Button Stop/Power Off, Password
Security, Automatic Diagnostics, Error and Activity
Logs, Service Reminders, Backup/Restore Functions,
USB, Load Firmware Updates, All Operator
Languages, Download Languages -
SmartFilter™ Life
2,000 hours
Interfaces
-
User Interface
10.4" (264 mm) Color LCD, Touch
Screen, Icon based – Graphical User Interface (GUI) -
Machine Interface
RS232, Ethernet
-
Inputs
1 Photocell, 1 Photocell or Programmable
Input, 1 Shaft Encoder, 8 Field Programmable Inputs,
Remote Message Selection option – 256 possible
selections -
Outputs
4 Alarm Outputs, 1 Relay Output
Inks
-
Ink Delivery
SmartFill™ Ink Bottle: 32 oz (946 ml),
SmartFill™ Makeup Bottle: 32 oz (946 ml) -
Fluid Capacity
Ink Capacity: 68 oz (2 liters),
Makeup Capacity: 102 oz (3 liters) -
Ink Types
Print Direct to Food Products - Food
Grade USDA, FDA Approved and Compliant -
Ink Colors
Red, Blue and Green
-
Ink Dry Time
Porous Food: immediate.
Semi-porous food: immediate. Non-porous: 3 to 7
seconds
