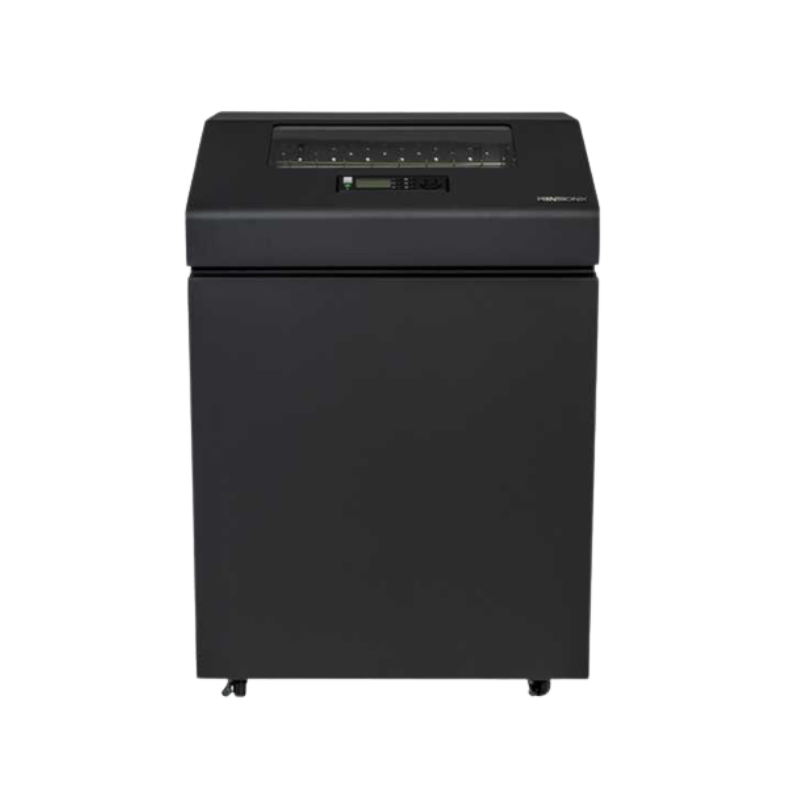

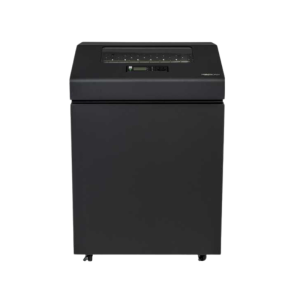

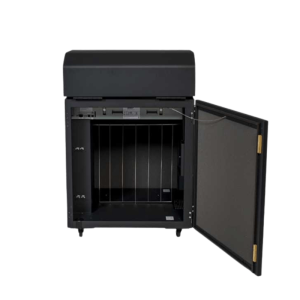

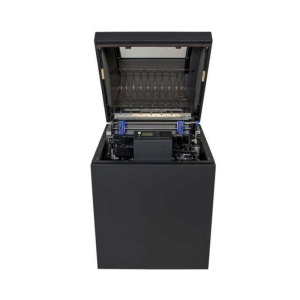

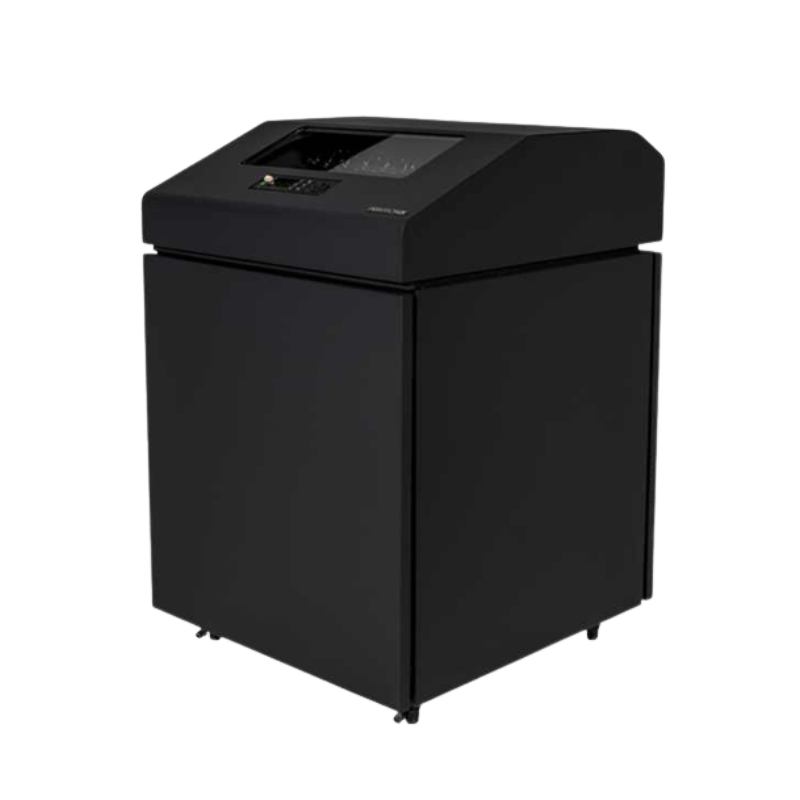

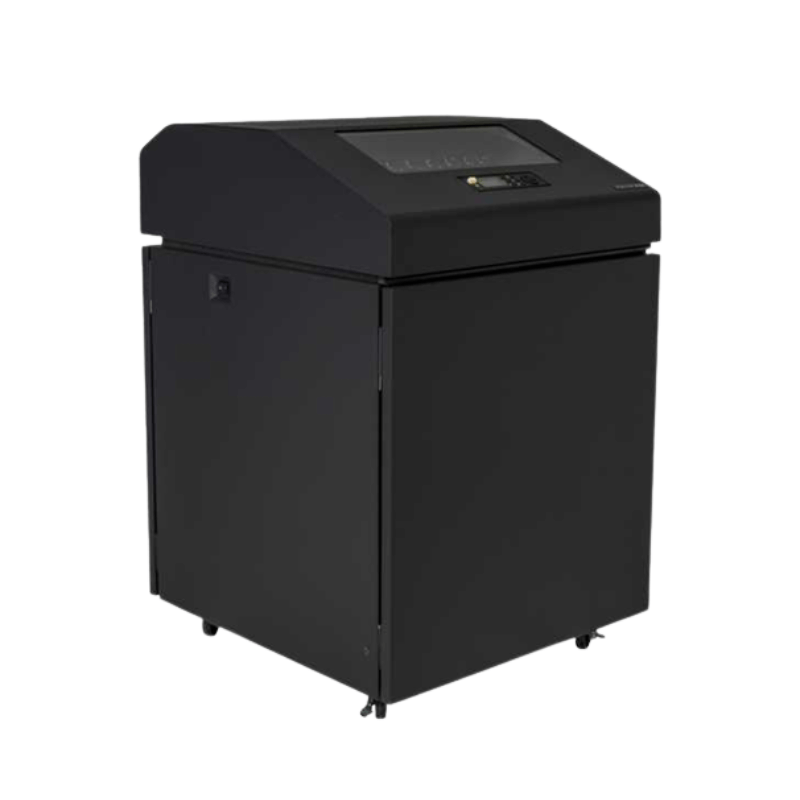

Printronix P8000 / P8000 Plus Cabinet
The Printronix P8000 / P8000 Plus Cabinet is a flagship line matrix cabinet printer built for organizations that run high-volume, continuous-forms printing and need quiet operation without sacrificing speed. It’s engineered for dependable printing in demanding office and industrial environments, with models available up to 2000 lines per minute, plus upgrade paths for modern IT needs like PDF/PostScript printing (OpenPrint) and 802.1X / IPv6 on P8000 Plus models.
Key Features
- High-speed line matrix printing (models up to 2000 LPM)
- Quiet cabinet design for lower-noise operation in production/office areas
- Built for reliability in demanding environments
- Continuous forms + multi-part printing for high-volume operational documents
- Flexible media handling (wide forms, labels, card stock, recycled media)
- Enterprise connectivity (Ethernet / USB / Serial standard)
- Lower operating cost vs laser (consumables cost per page claim)
- Remote monitoring/management with PrintNet Enterprise
Made for High-Volume Operations
Printronix positions the P8000 Cabinet series for sectors like automotive, transportation, food & beverage, and retail distribution, with common applications including manifest/BOL, delivery receipts, broadcast sheets, and green bar printing.
Technical Specifications
Dimensions and Weight
-
Height
40.5” (1028.7 mm)
-
Width
27″ (685.8 mm)
-
Depth
29″ (736.6 mm)
-
Printer Weight
200 lbs (90.7 Kg)
-
Shipping Printer Weight
265 lbs (120.2 Kg)
Emulations
-
Standard
LP+ (Printronix P-Series, P-Series XQ, Serial Matrix, IBM ProPrinter III XL, Epson FX-1050), ANSI, PCL 2, TN5250/TN3270, Graphics Emulation PGL & VGL
-
TG
Tally ANSI (Tally Industrial Graphics), Genicom ANSI, Printronix P600 (QMS Code V) / P5000 / P6000 (PGL – TG Version), Epson FX-1180, IBM ProPrinter, MTPL (Tally Dot Matrix), HP2564C (PCL3), DEC LG01 (text only)
-
Optional
IPDS, DEC LG (text & graphics) OpenPrint PDF & PostScript
Connectivity and Others
-
Connectivity/Interfaces
Standard: USB 2.0, Serial RS-232, Ethernet 10/100BaseT
Optional (P8000 Plus): 802.1X and IPv6 -
Printer Software
Printronix PrintNet Enterprise remote management software, SAP device support
-
Printer Drivers
Windows XP, 7, 8, 10; Windows Server 2003, 2008/R2, 2012, 2016, 2019, 2022; Linux/UNIX; SAP
-
MTBF
10,000 hours at 25% duty cycle and 25% page density
Printing
-
Paper Type
Continuous, fan folded, edge-perforation
-
Print Width
13.6″ (345mm)
-
Media Copies
Up to 6 part
-
Consumable/Ribbons
Standard Life Cartridge Ribbon: 17,000 pages
Extended Life Cartridge Ribbon: 30,000 pages -
Maximum Monthly Workload (pages)
P8P05 / P8C05 / P8Z05 120,000
P8P10 / P8C10 / P8Z10 240,000
P8C15 (P8000 Plus) 360,000
P8C20 (P8000 Plus) 480,000
