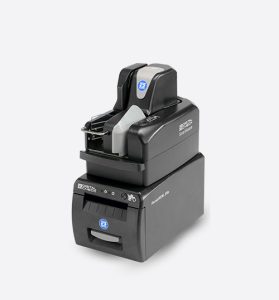

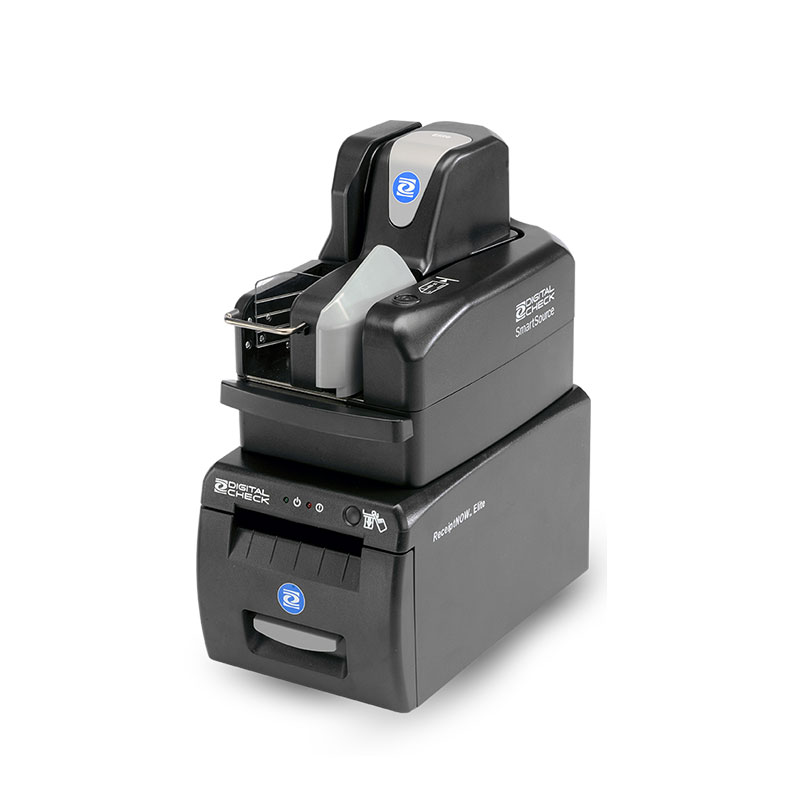

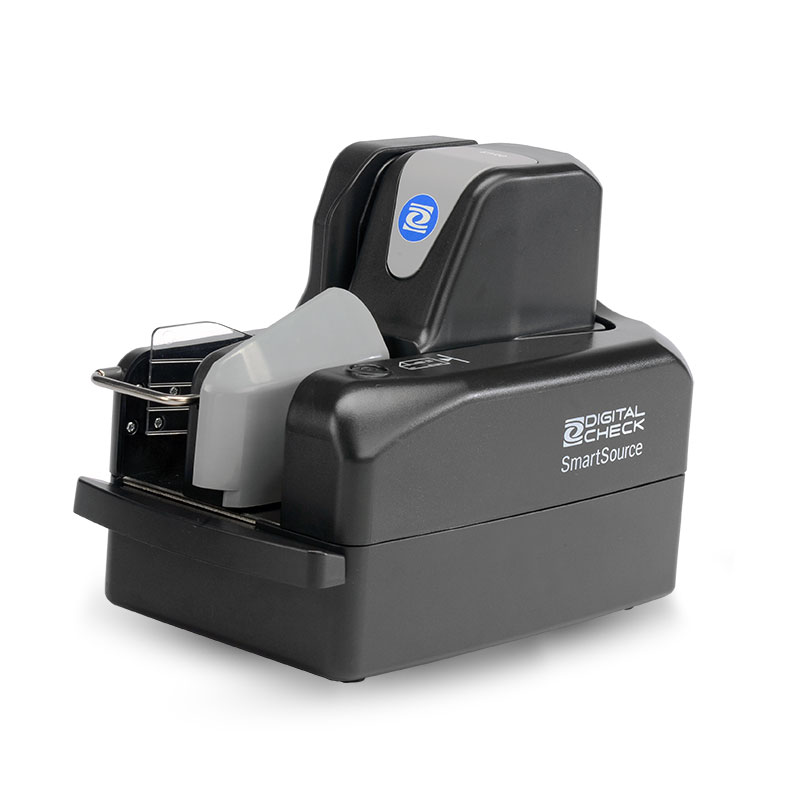

SmartSource® Expert Elite
The SmartSource Expert Elite is a high‑volume, network‑ready multi‑feed check scanner built for modern teller windows and RDC (Remote Deposit Capture) environments. It’s part of Digital Check’s “Elite” line, upgraded with embedded network capabilities, automatic cleaning, front ID capture, and full OS‑independence to meet the needs of virtual branches and thin‑client workstations.
- Built‑in embedded processor & API for network‑ready functionality (SecureLink 2.0 and RNDIS)
- Scanning speed up to 150 documents per minute for high throughput
- Optional rear ink‑jet endorser (up to four lines)
- 600 dpi full‑color front‑feed ID card capture
- Automatic cleaning mode with Smart LED indicator
Why Choose the SmartSource Elite 55?
- It can be managed directly via SecureLink 2.0 from any device with a browser, regardless of OS.
- You get high speed, high capacity, and the flexibility of either USB or native Ethernet connectivity
Technical Specifications
Dimensions
-
Height
6.99″ (17.8 cm)
-
Width
5.39″ (13.7 cm)
-
Length
8.86″ (22.5 cm)
-
Weight
4.7 lbs. (2.1 kg)
Scanner Speed
-
Rated speed
75 or 150 documents per minute
-
Image sensor
600 dpi color
-
Input
100 items
-
Output
150 items
Operating System
-
SecureLink API/Ethernet
OS independent
-
SecureLink/Ethernet over USB
Windows 11, Windows 10 (32/64-bit) x86 versions only, macOS X (contact us for specific versions)
-
SmartPVA
Windows 11, Windows 10 (32/64-bit), x86 versions only
-
DCC API
Windows 11, Windows 10 (32/64-bit), x86 versions only
Additional Details
-
Rear endorser
600 dpi, 1-4 lines
-
MICR
E13B and CMC7 (auto-detecting)
-
OCR
OCR-A, OCR-B, E13B
-
Operating power
25 W
