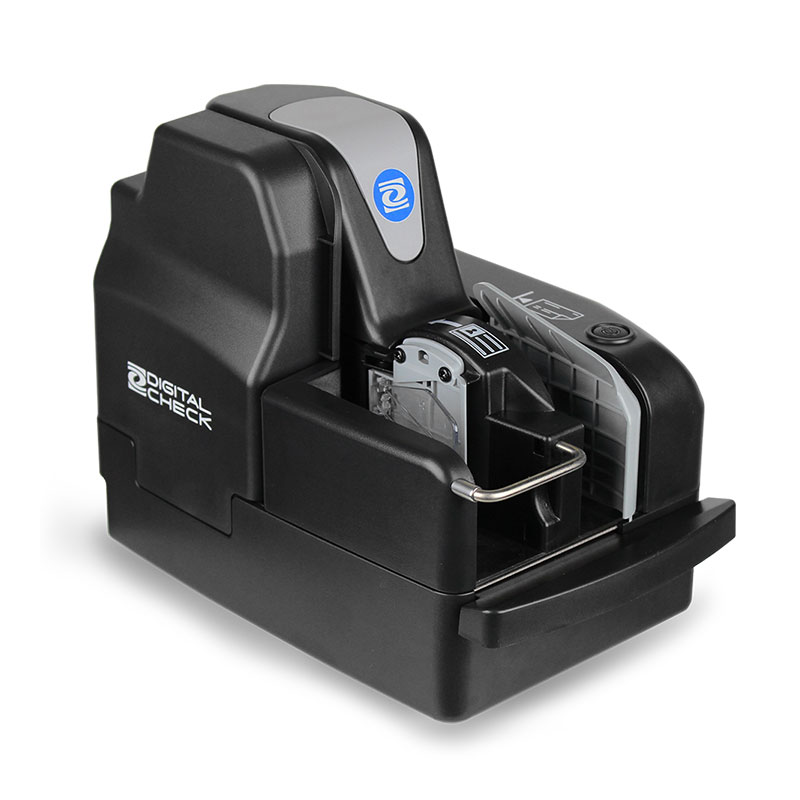

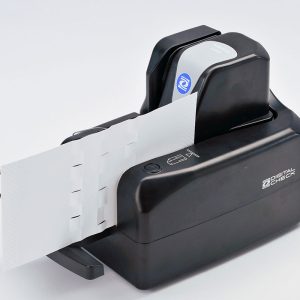

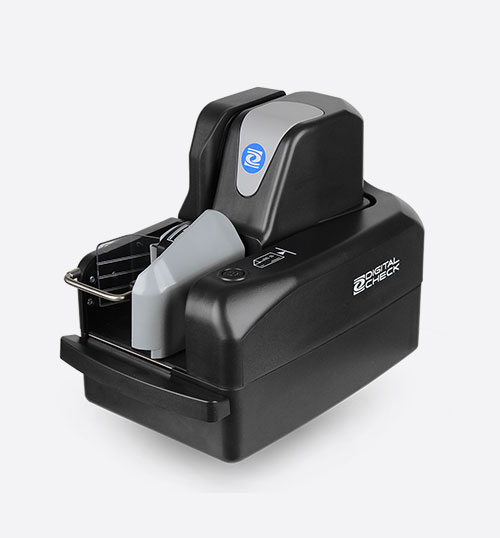

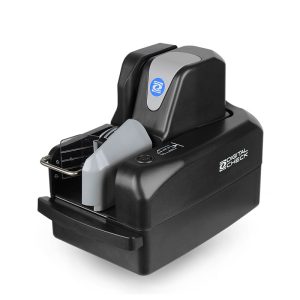

TellerScan® TS250
The TellerScan TS250 is Digital Check’s next‑generation multi‑feed / high‑speed check scanner, built for teller windows and high‑volume remote deposit capture (RDC) environments. Combining the best of the TellerScan TS240 and SmartSource Elite lines, the TS250 offers modern connectivity, advanced image quality, and maintenance‑friendly features.
Key Features
- SimpleSwitch connectivity: switch between USB (Digital Check API), network (SecureLink 2.0), and in select models SmartPVA
- Full‑color front‑feed ID card scanning with 600 dpi for high resolution.

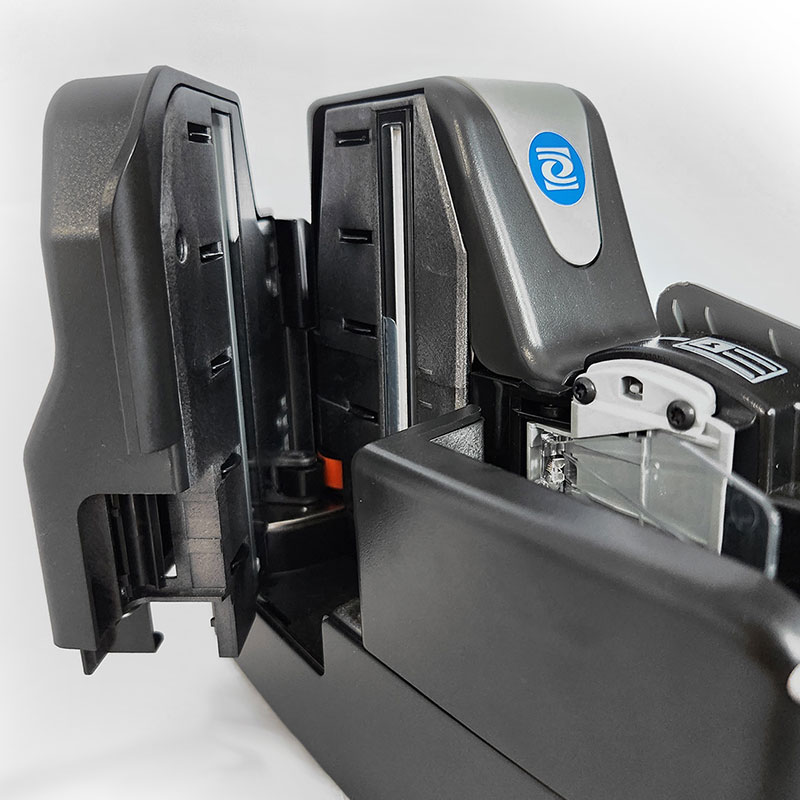

- Automatic cleaning mode + Smart LED indicator.

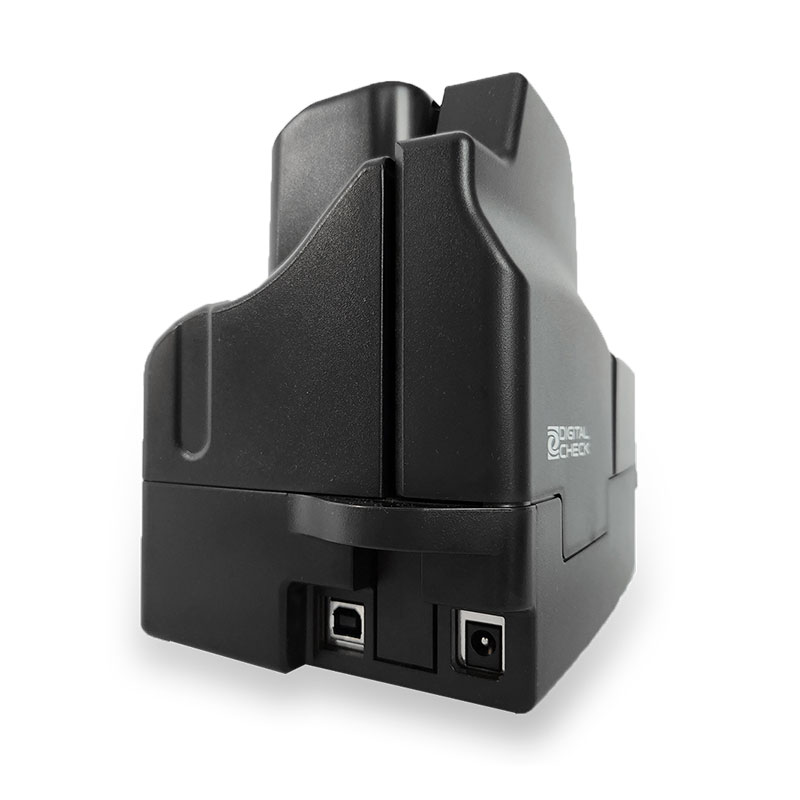

- Network‑ready via RNDIS (“Ethernet over USB”), zero‑footprint setup, compatible across OSes including Windows, macOS, Linux, and virtual environments.
- Multiple speed options: rated at 55, 75, and 120 documents per minute.
- Optional rear single‑line inkjet endorser.
Why Choose the TellerScan® TS250?
- Choose the TellerScan TS250 when you need a high‑speed, reliable check scanner that blends advanced features with flexibility.
- It’s ideal for busy teller environments or large RDC operations.
- Flexible operation modes.
- Designed for minimal maintenance.
Technical Specifications
Dimensions
-
Height
6.99″ (17.8 cm)
-
Width
5.93″ (15.06 cm)
-
Length
8.66″ (22 cm)
-
Weight
4.7 lbs. (2.1 kg)
Scanner Speed
-
Scanner Speed
Rated speed: 50, 75, or 120 documents per minute
-
Image sensor
600 dpi color
-
Input
100 items
-
Exit pocket capacity
150 items
Operating System
-
Operating System
Windows 11, Windows 10 (32/64-bit), LinuxOS, macOS* (DCC API or RNDIS only)
-
Operating System
Digital Check API, SmartPVA (55 dpm only), SecureLink 2.0 (RNDIS)
Additional Details
-
Rear endorser
96 dpi, single-line
-
MICR
E13B and CMC7 (auto-detecting)
-
OCR
OCR-A, OCR-B, E13B
-
Operating power
25 W
